Author Topic: 3.8" EVE2 480x116 in an Optical Reveiver  (Read 14226 times)

Matrix Orbital

  • Newbie
  • *
  • Posts: 34
    • View Profile
    • Matrix Orbital
3.8" EVE2 480x116 in an Optical Reveiver
« on: June 21, 2022, 06:43:22 AM »

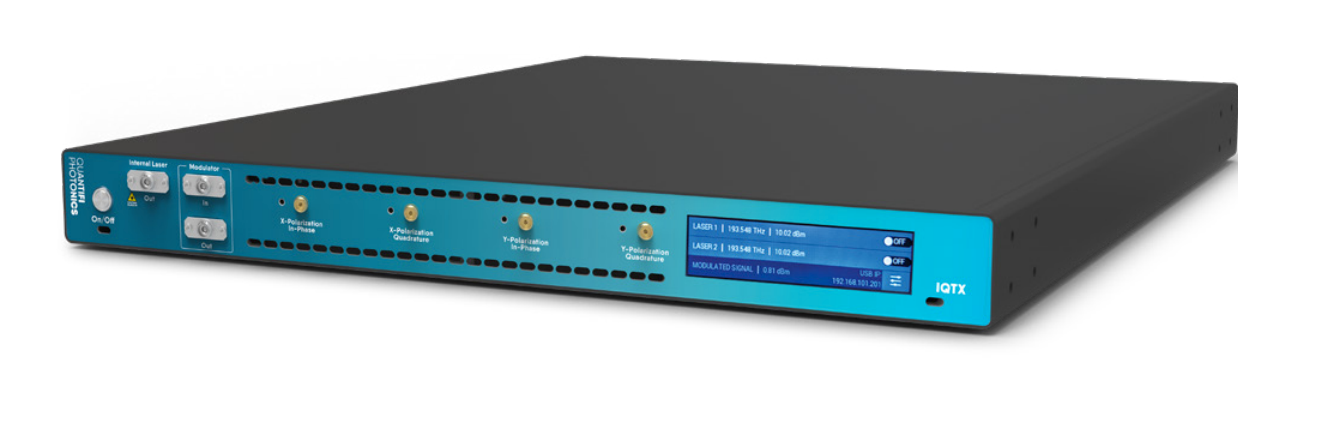

One of the best integrations of our 1U displays. An EVE2 with our custom symmetrical 480x116 1U TFT, using resistive touch, SPI interface, 3.3V.

"IQTX – coherent optical modulation transmitter

Generate and control phase-modulated optical signals at 11 GHz, 20 GHz, 23 GHz or 40 GHz of bandwidth. Supports M-QAM, M-PSK and custom modulation formats and Baud rates beyond 64 GBaud."

Display:
https://www.matrixorbital.com/eve2-38a

Company:
https://www.quantifiphotonics.com

« Last Edit: July 14, 2022, 10:55:12 PM by Matrix Orbital »
Logged
Matrix Orbital
Display Solution Provider

Embedded HDMI TFT's, EVE2, EVE3 & EVE4 TFT's, Serial LCD's, USB, LCD's

www.matrixorbital.com
www.lcdforums.com/forums

BRT Community

  • Administrator
  • Hero Member
  • *****
  • Posts: 770
    • View Profile
Re: 3.8" EVE2 480x1180 in an Optical Reveiver
« Reply #1 on: June 22, 2022, 11:36:26 AM »

Hi,

Thanks for sharing,

Yes, great work, the display fits in perfectly with the product and the front panel. The 480x118 panel is ideal for updating a wide range of 1U rackmount equipment to have color graphics and touch.

Best Regards, BRT Community
